Classic Docks

Exceptional Engineering Redefines the Sectional Dock

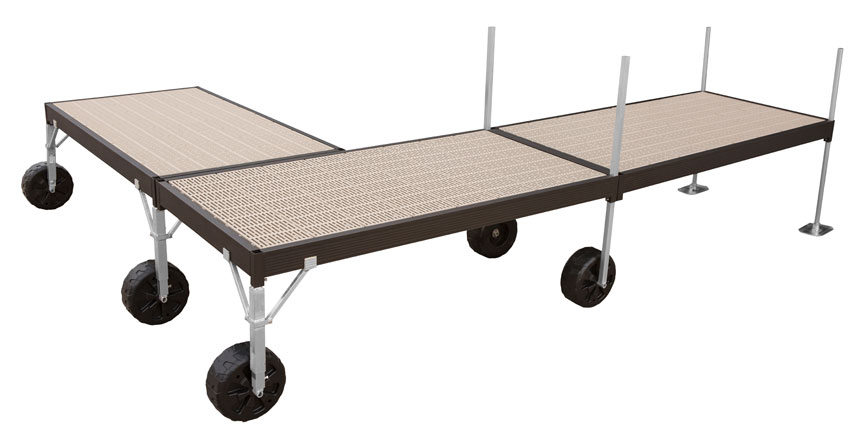

Hewitt Classic Dock offers the great appearance and flexibility of a post and plank dock in a high-strength modular system. The Classic is perfect for people who want to make the most of their recreational time. Large 4’ x 8’, 4’ x 12’, 4’ x 16’ sections mean fewer parts for faster installation. Optional wheel kits are also available to aid placement and removal. Aluminum construction eliminates painting and requires little or no maintenance. Modular design also makes it easy to add on or change the configuration of your dock at any time.

Features

Simplified Assembly

Simplified Assembly

Pre-engineered components make installation a breeze with a 1/2” wrench the only tool needed for assembly. Dock sections are secured and adjusted for height with the turn of a bolt, and the 4’ x 4’ deck sections simply drop into place – no fasteners needed. For a streamlined appearance, poles may be cut flush with the deck surface.

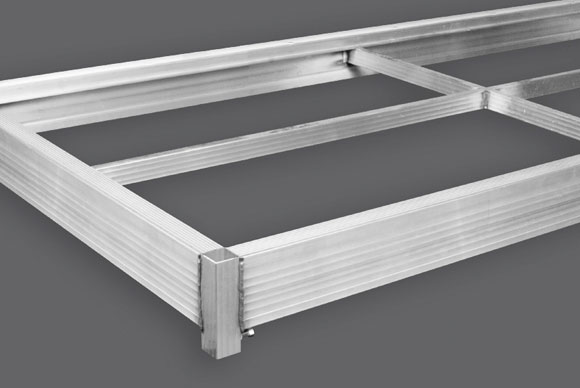

Heavy-duty Framework

Heavy-duty Framework

Classic 4’ x 8’, 4’ x 12’, and 4’ x 16’ frame sections are extremely strong yet lightweight. Made from rugged 2” x 5” double-wall extruded aluminum, the frames are reinforced with one center beam and two crossbars. Support poles, pads and fittings are also made from lightweight, corrosion-resistant aluminum.

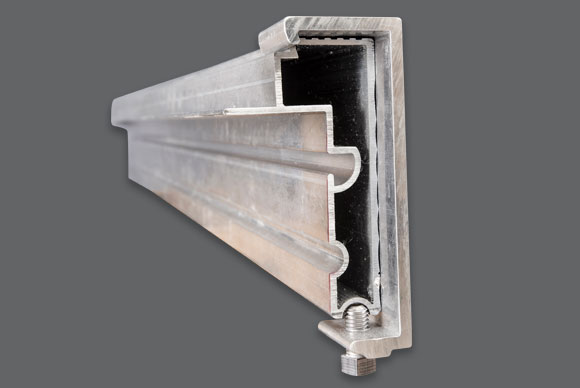

Classic Dock Accessory Plate

Classic Dock Accessory Plate

Custom aluminum extrusion that allows other accessories to be mounted to the classic dock.

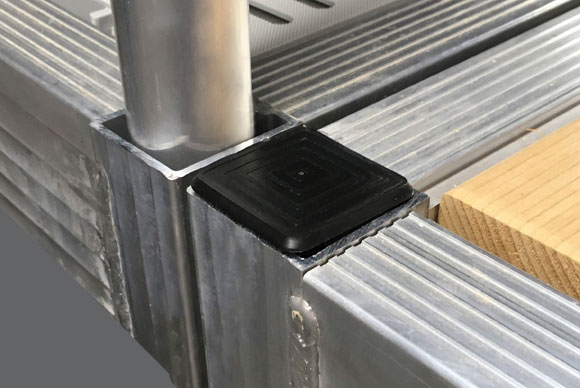

Classic Dock Plug

Classic Dock Plug

Plastic plug fills open corner pocket of dock for a clean look.

Classic Dock Heavy-Duty Corners

Corners have changed to a heavy wall tube with a tapped set screw. Sides and ends have changed to a new extrusion to accept accessories.

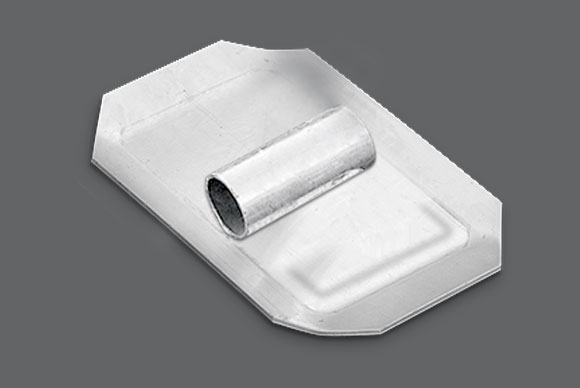

Classic Dock Wheel Pad

Classic Dock Wheel Pad

Mud pad that slides on the axle of an upright wheel or screw legs.

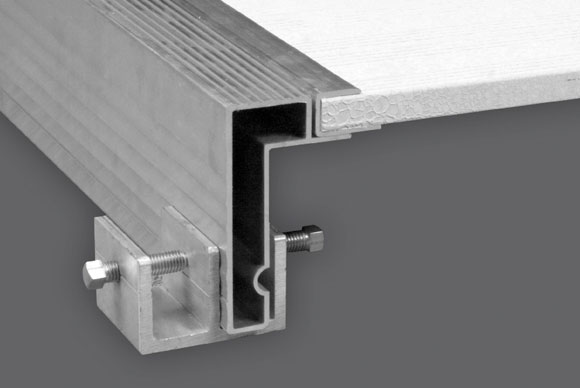

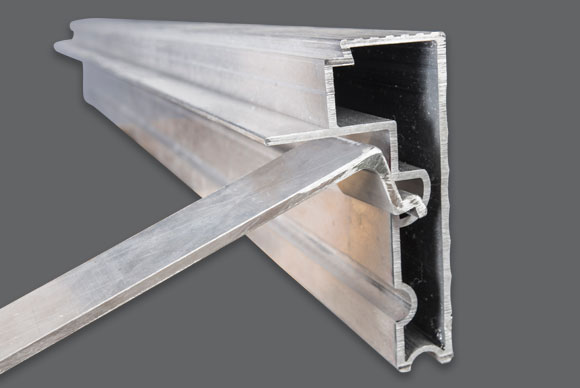

Classic Dock Backer Plate

Classic Dock Backer Plate

Interlocking dock support plate for increased stability mounting accessories to dock.

Custom Paint Options

Classic Dock Painted

Powder-coating of sides and ends now available on the Classic Dock with the color of your choice. 8′, 12′ and 16′ painted sections available.

Dock shown above is painted in Rubbed Oil Bronze

Silver Vein with Clear Topcoat

Silver Vein with Clear Topcoat

Silver Hammer Semi-Gloss

Silver Hammer Semi-Gloss

Silver Hammer Semi-Gloss

Rubbed Oil Bronze

Peco Black

Peco Black

Mock Rock Texture

Mock Rock Texture

Green

Green

Flint Grey Texture

Flint Grey Texture

Cracked

Cracked

Mock Rock Texture

Cardinal Hammer Gray

Brown Spec Texture

Brown Spec Texture

Blue Hammer

Blue Hammer

Black Hammer

Black Hammer

Beige Texture Semi Gloss

Beige Texture Semi Gloss

Layouts

Classic Dock Layouts
