Hi-Lift Vertical Lift

The Hewitt Hi-Lift is an economical, direct vertical rise lift ideally suited for deeper water applications or sites where water levels may fluctuate. These lifts are based on simple, proven technology but are distinguished by Hewitt’s rock-solid construction and unique frame design, incorporating side bars that provide easier boat access and greater stability than typical “V”-style designs. While the competition’s adjustable side bars limit maximum lift height, Hewitt’s twelve different Hi-Lift models provide lifting capacities ranging from 1100 lbs to 10,000 lbs.

Hi-Lift Vertical Styles

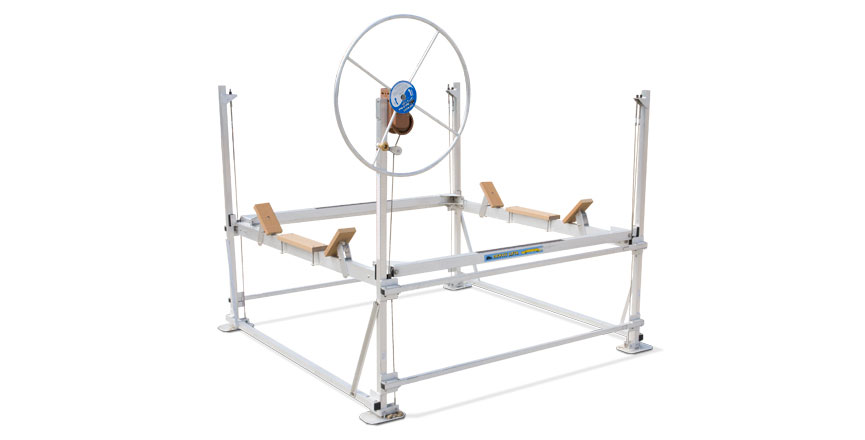

HL1600

HL1600

Standard winch, adjustable cradles and keel protectors.

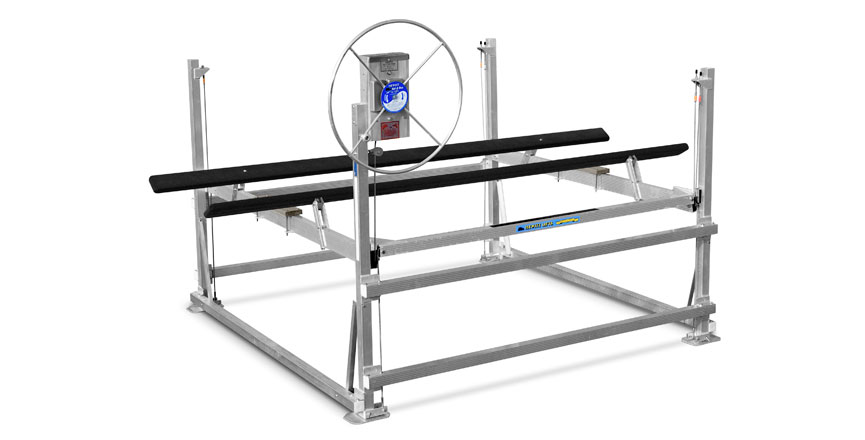

HL3800

HL3800

Standard full-length bunks and Hewitt high-efficiency winch.

HL3800

HL3800

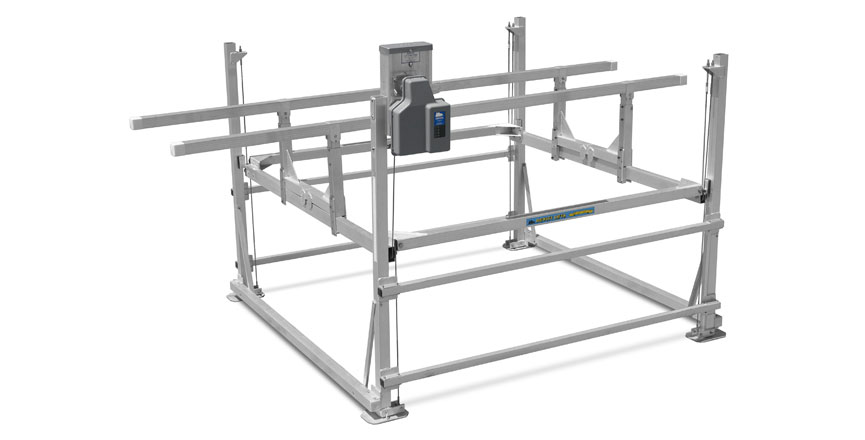

Shown with optional adjustable pontoon rack kit and Hewitt2 Direct Drive.

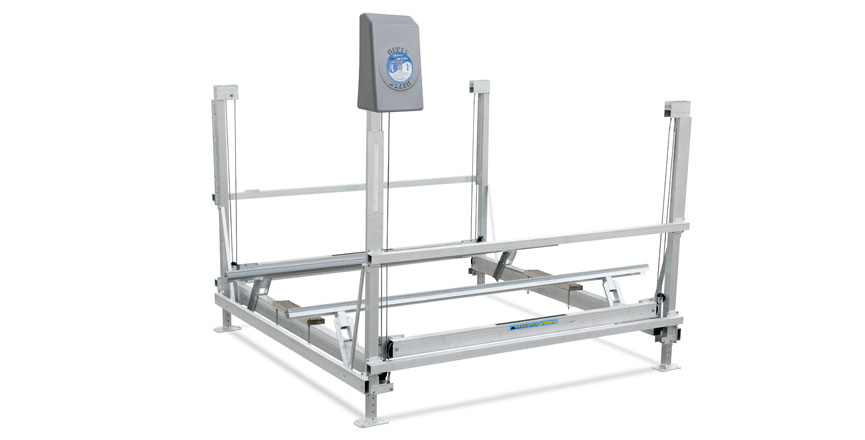

HL6600

HL6600

Standard full-length bunks and heavy-duty electric winch.

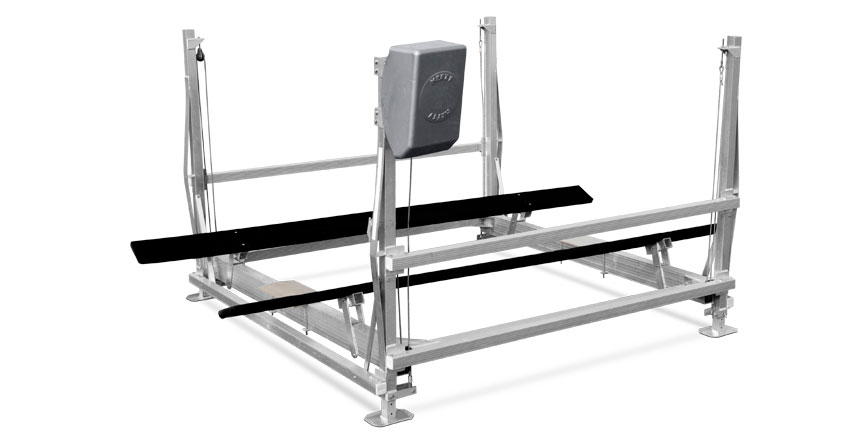

HL8000/10,000

HL8000/10,000

Standard carpeted aluminum V-bunks and heavy-duty electric winch.

Winches and Bunk Systems

WINCHES

The Model HL1100 and HL1600 are equipped with Dutton Lainson winches, with respective 4:1 and 6:1 gear ratios. Models HL2600 to HL5600 are equipped with Hewitt high-efficiency winches, with 15:1 and 20:1 ratios. All manual winches include a 40” aluminum winch wheel with spinner knob. Larger models from the HL6600 to HL8000 come standard with a heavy-duty electric winch. An optional 25:1 manual winch with wheel is also available for the HL6600. HL10,000 comes standard with an E-drive 220V Electric motor or optional 24V motor.

BUNK SYSTEMS

For lighter craft the HL1100 and HL1600 include four non-scratch cradles and two keel protectors. Models from the HL2600 to HL6600 are equipped with full-length, carpeted bunks and two keel protectors. Carpeted aluminum V-bunks are standard on the HL8000 and HL10,000. See pages 108-123 for pontoon kits and other options.

Features

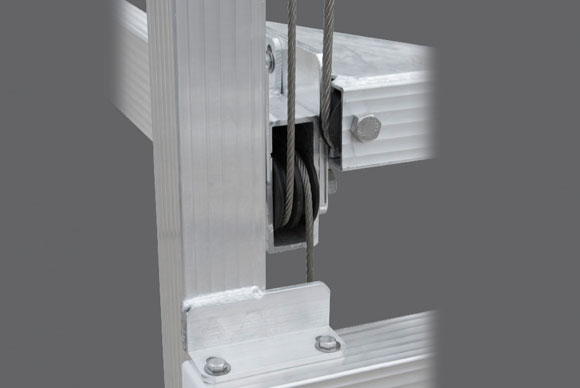

1100-1600 Series Cables

1100-1600 Series Cables


Design and construction details emphasize durability and trouble-free operation. The corrosion-resistant components include a structural aluminum frame, pre-strung, stainless steel cables and full-width acetal Delrin plastic pulleys with hardened, cast bronze bushings. End-mounted pulleys mean there are no exposed cables midway to interfere with access.

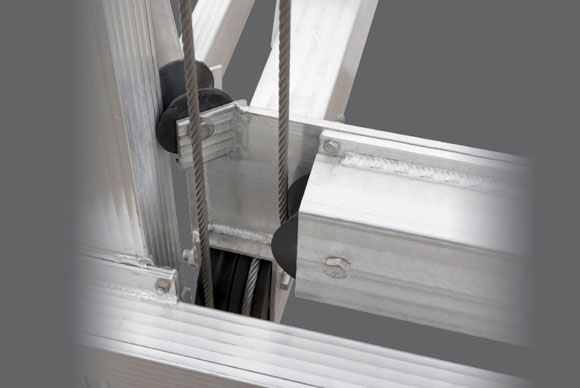

2600-10,000 Series Cables

2600-10,000 Series Cables


Design and construction details emphasize durability and trouble-free operation. The corrosion-resistant components include a structural aluminum frame, pre-strung, stainless steel cables and full-width acetal Delrin plastic pulleys with hardened, cast bronze bushings. End-mounted pulleys mean there are no exposed cables midway to interfere with access.

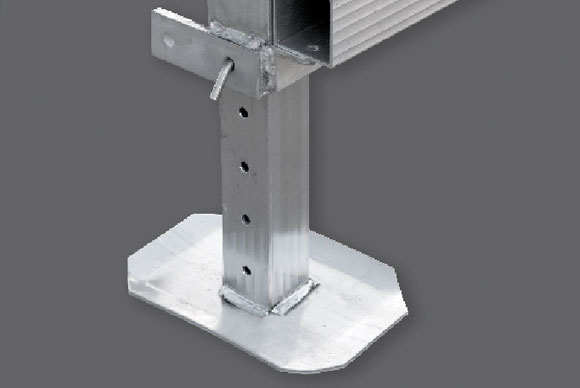

Leveling Legs

Leveling Legs


Four leveling legs with stainless steel quick-release pins allow easy height adjustment. 30” legs are standard on 1100 lb to 6600 lb lifts; 48” on 8000 lb to 10,000 lb lifts. Longer legs are also available.

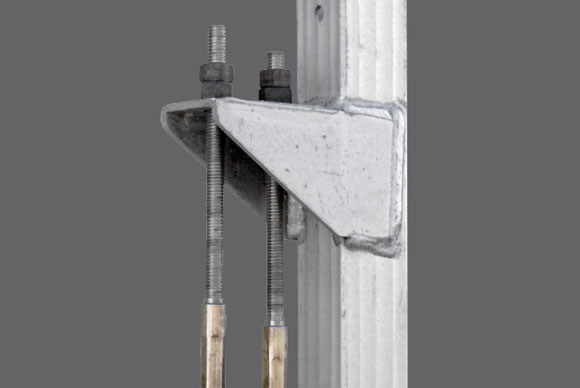

Cable Adjustment Bolts

Cable Adjustment Bolts


Extra long cable adjsutment bolts enable easy optimization of cable tension.

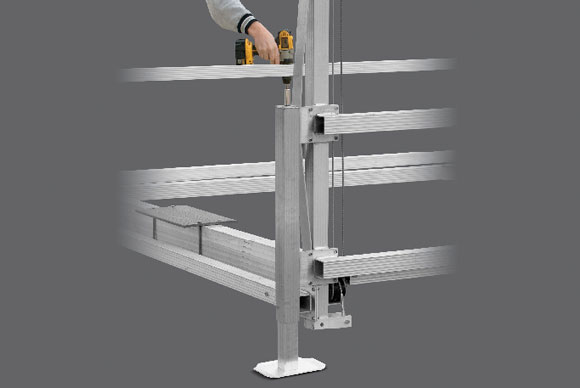

Optional Adjustable Screw Leg

Optional Adjustable Screw Leg


Hi-lifter adjustable screw legs mount on the corner of the lift and operate with a simple cordless drill. 30” of total adjustment. Fits Hi-Lifts 2600 lbs to 5600 lbs.

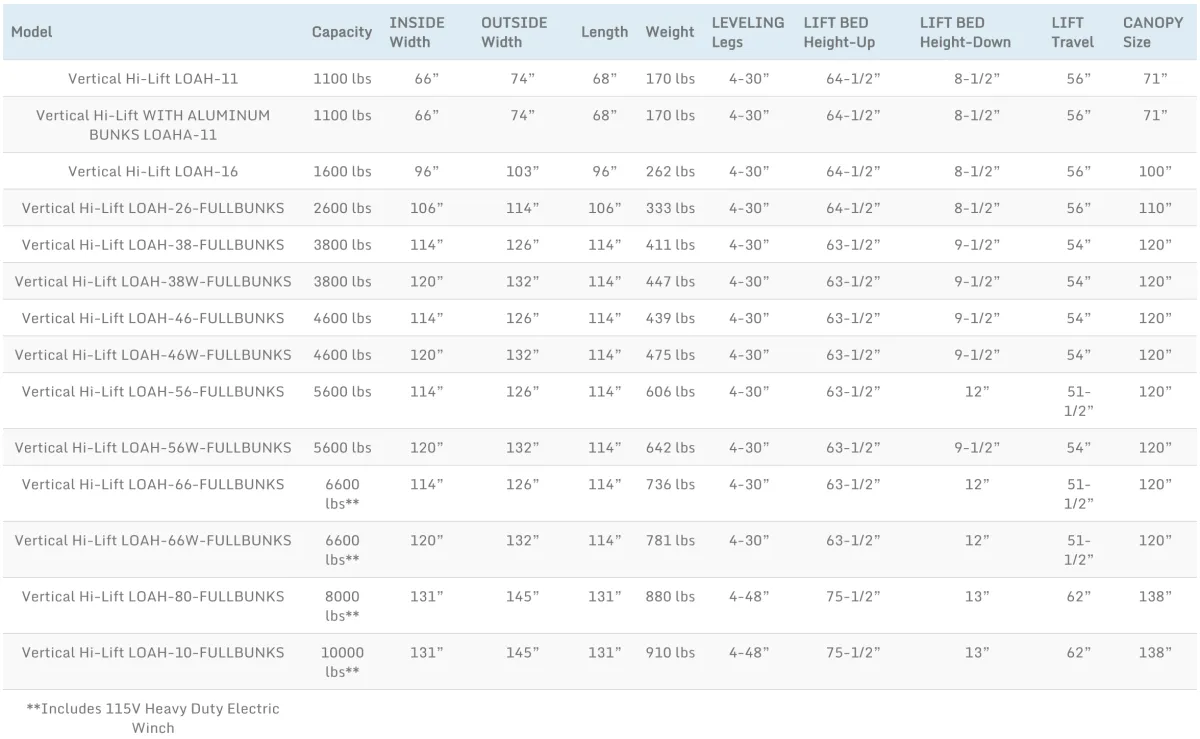

Specifications
