Hydraulic Lifts

Hewitt hydraulic lifts offer the push-button convenience and remote control operation of our standard cantilever hydraulic models, plus faster cycle times and higher capacities, which range from 4400 lbs to a massive 24,100 lbs. All lifts have corrosion-resistant, all-aluminum frames and include a locking, water-resistant chest for housing the hydraulic pump and control system. With optional bracing and leg kits, these lifts can be used in water up to 10’ deep. All sizes are available in 220V AC and 12V or 24V DC battery powered models. A wide range of optional equipment is also available, including solar cell battery chargers, lighting kits, pump box stand, canopies and more. Lift heights for all models is 77-1/2” with the exception of Models 4400 and 6100 which are available in 54” and 76” lift heights. Hewitt hydraulic lifts are engineered to raise their maximum rated loads through the full arc of travel without hesitation. Hydraulics are optimized to provide the fastest operating speed in the industry without increasing pressure and over-stressing the pump.

Photo Gallery

Hydraulic Lift Styles

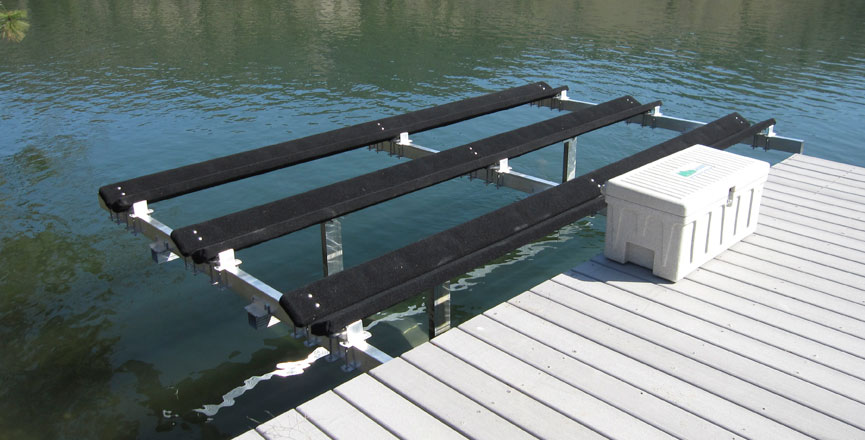

Hydraulic Lift with Pontoon Bed

Hydraulic Lift with Pontoon Bed

Designed to carry twin or triple tube pontoon boats on vinyl-covered or carpeted wood bunks. The bed evenly distributes weight and provides full-length support.

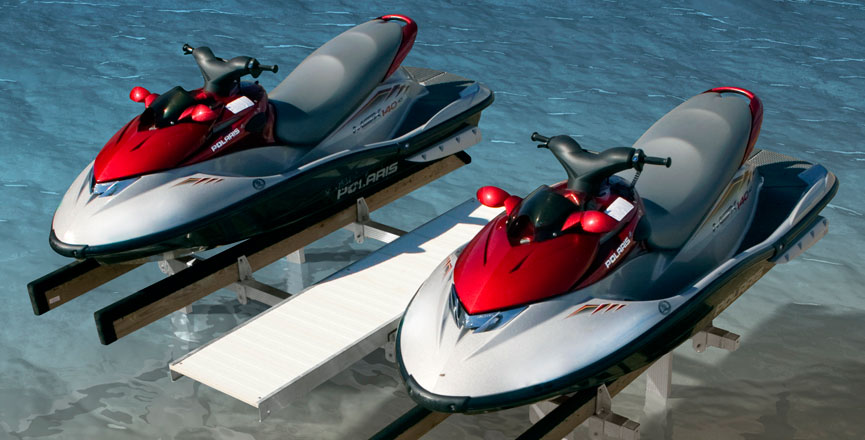

PWC Hydraulic Lift

PWC Hydraulic Lift

4400 lb model with push-button control, perpendicular bunks and an optional walkway is the ultimate twin watercraft lift. Quad models also available.

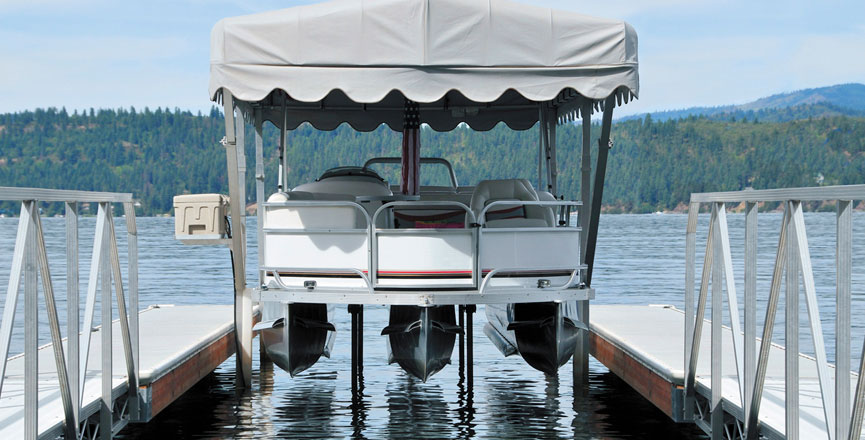

Pontoon Hydraulic Lift

Pontoon Hydraulic Lift

Pontoon boats can also be carried on their frames. Lift arms are spaced to fit between the tubes. The optional pump box stand can be added to any model to save dock space.

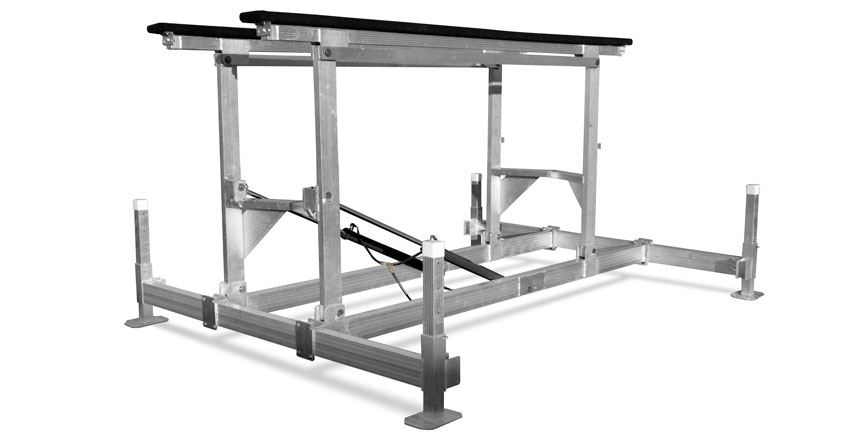

Standard Lifts

Standard Lifts

4400 lb and 6100 lb
(Two hydraulic cylinders)

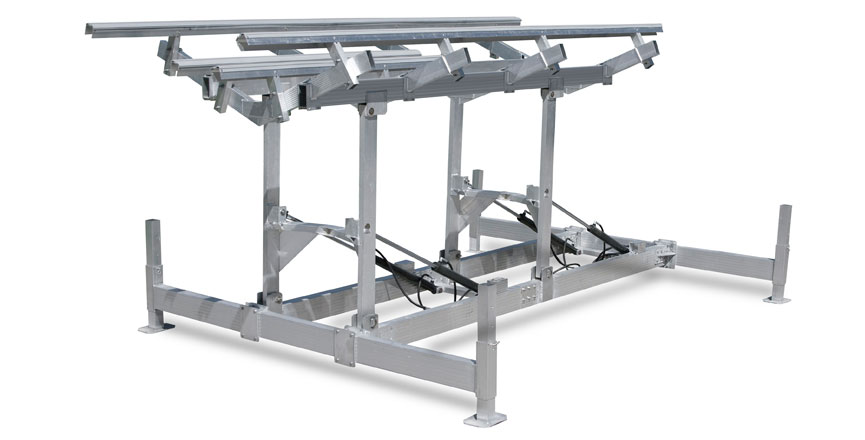

Mid-Range Lifts

Mid-Range Lifts

8100 and 10,100 lb Lifts
(Four hydraulic cylinders)

Heavyweight Class Lifts

Heavyweight Class Lifts

12,100 lb (Four cylinders), 18,100 lb (Six cylinders)
and 24,100 lb (Eight cylinders)

Features

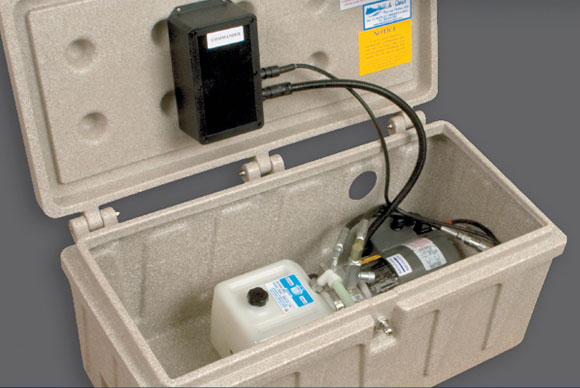

Hydraulic Pump, Control System and Chest

Hydraulic Lift with Pontoon Bed

All models include a locking, water-resistant chest that houses the hydraulic pump and control system. For DC models, the chest also provides storage space for batteries. Lifts can either be operated with the push button controls within the chest or with the convenient key fob remote controls. The hydraulic system uses biodegradable hydraulic fluid that will not harm lakes or rivers. The fluid’s anti-freezing properties also simplify winter storage. A translucent fluid reservoir makes it easy to check fluid level at a glance.

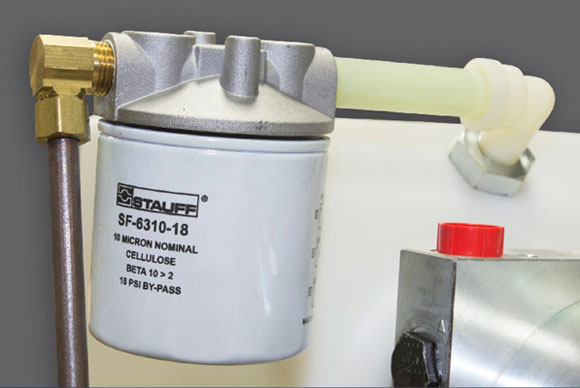

External Filter

PWC Hydraulic Lift

Filter is standard on 4,400 to 8,100 pumps. Particle contamination of hydraulic oil reduces the service life of hydraulic components. This external filter is key to keeping your hydraulic oil clean and pump running smoothly without having to remove the reservoir to access the in-tank filter found on all competitor pumps.

Marine Quality Hydraulic Cylinders

Marine Quality Hydraulic Cylinders

Aluminum cylinders with solid stainless steel shafts are standard on 4400, 6100, 8100, and 18,100 lb lifts. Commercial grade steel cylinders with triple-chrome shafts are standard on 10,100 and 12,100 lb lifts. All cylinders have long-lasting seals with scrapers designed for underwater use and hoses with water-resistant covering. Threaded end caps, allow access to the cylinders if repairs are ever required – a cost advantage over welded cylinders.

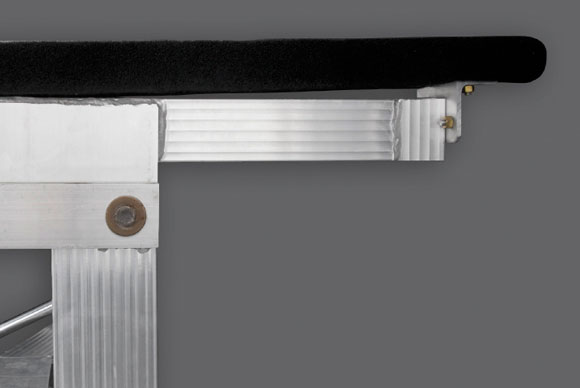

Reinforced Carpeted Tilting Bunks

Reinforced Carpeted Tilting Bunks

Full-length carpeted bunks on reinforced 3” x 3” square aluminum tubing are standard on 4400 – 10,100 lb models.

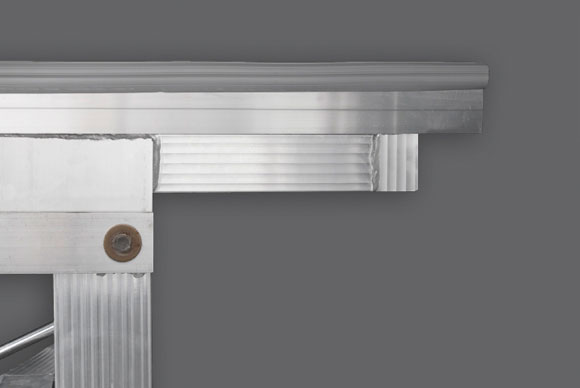

Aluminum/Rubber Bunks

Aluminum/Rubber Bunks

Aluminum bunks with full-length rubber are standard on 12,100 and 24,100 lb models and optional on lower capacity models.

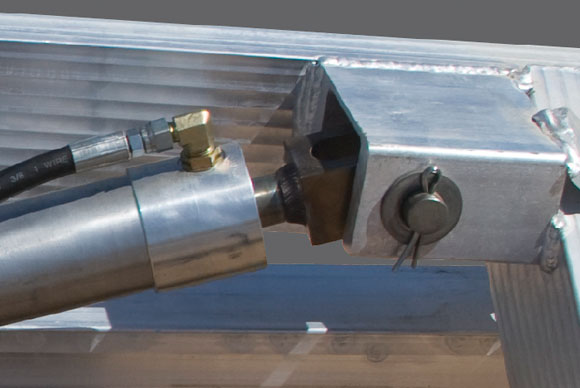

Heavy-Duty Pivot with Pin Lock

Heavy-Duty Pivot with Pin Lock

Extruded pivot points incorporate 1” stainless steel pivot pins with notched heads to prevent pin rotation and premature wear.

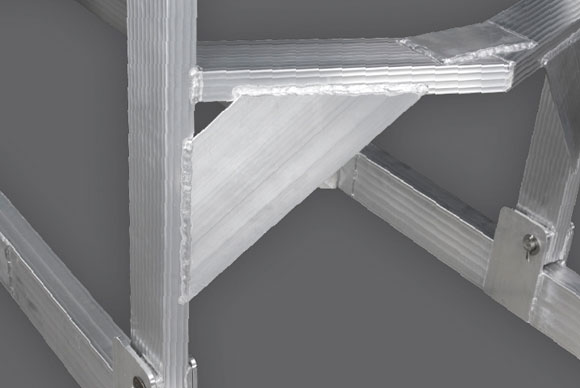

Welded “V” Plates

Welded “V” Plates

Cantilever frame features heavy-duty materials and construction. Lift arms are reinforced with extra large “V” plates to prevent swaying.

Specifications

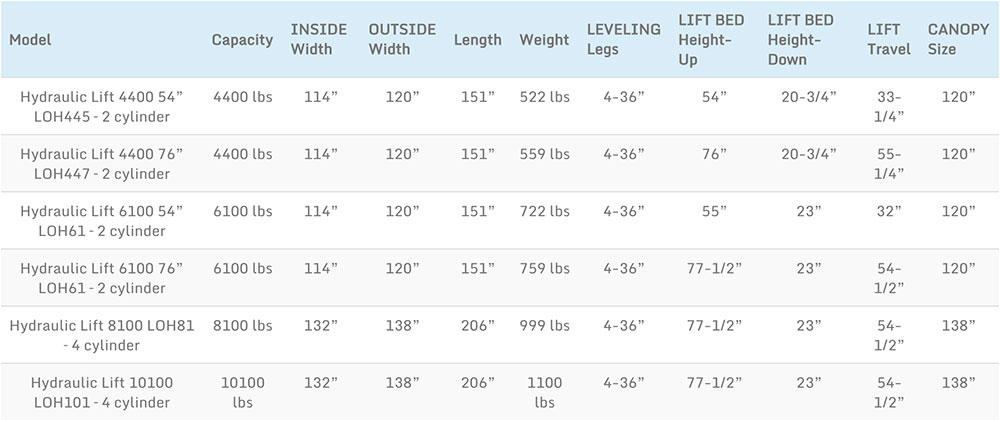

Hydraulic Lift Specifications
