Cable PWC Lifts

Dragging your personal watercraft or small boat across a rocky shore can ruin your hull – and your back. Raise and lower your light craft without strain or damage with Hewitt’s PWC lifts. Made as a single or a double, capacities range from 1150 lbs to 1800 lbs, and all models offer the benefits of all-aluminum construction – lightweight, high strength and rust-free corrosion resistance. Standard features include horizontal crossbar reinforcement, self-braking winches with enclosed gears, durable acetal Delrin pulleys with stainless steel cable and adjustable bunks.

Cable PWC Lift Styles

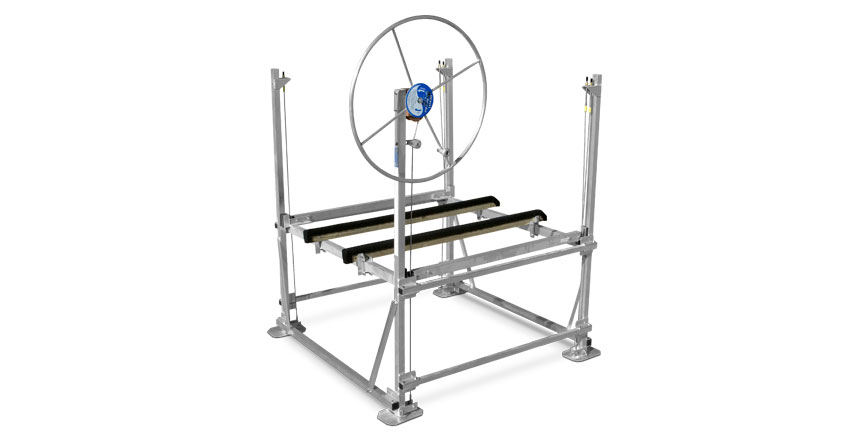

Single 1100 Hi-Lift

Single 1100 Hi-Lift

Includes winch with 40” wheel and spinner knob, four 30” leveling legs and end caps.

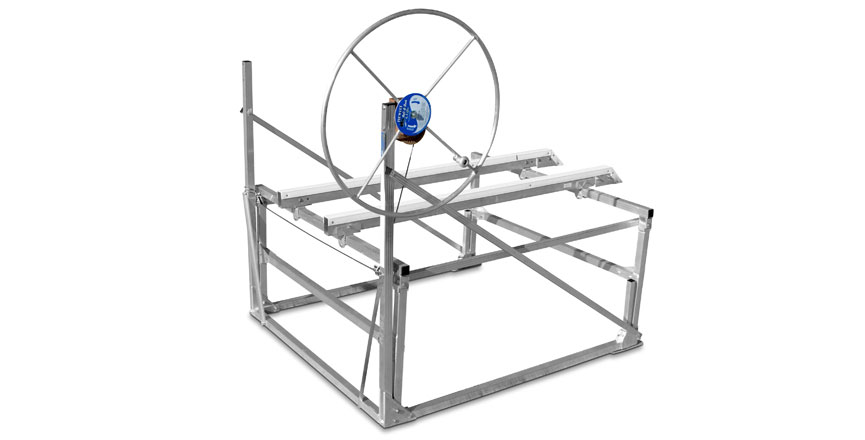

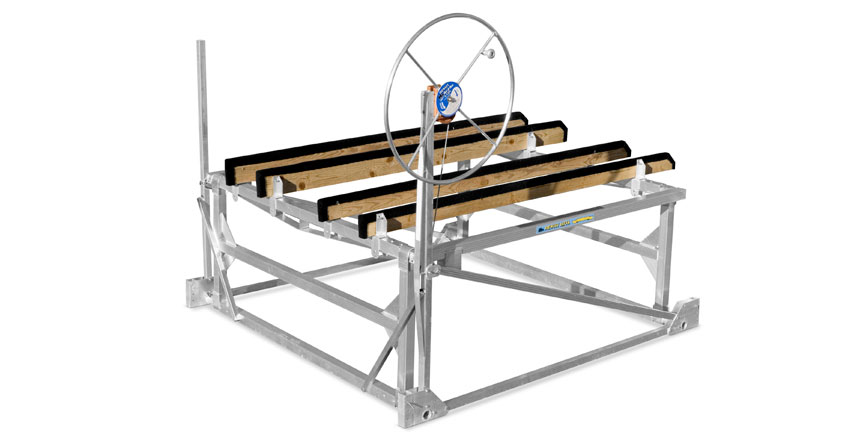

Single 1150 Cantilever

Single 1150 Cantilever

Includes winch with 40” wheel and spinner knob, two 18” leveling legs and end caps. Shown with optional Aluminum Bunks.

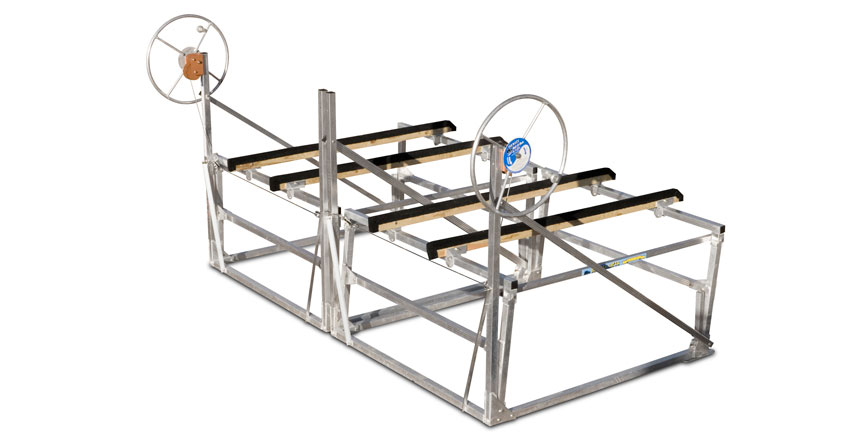

Double Winch 2300 Cantilever

Double Winch 2300 Cantilever

Includes two independent winches with 40” wheels and spinner knobs, four 18” leveling legs and end caps.

Double 1200, 1800 Cantilever

Double 1200, 1800 Cantilever

Includes winch with 40” wheel and spinner knob, and two different sets of bunks – one 2” x 6” and one 2” x 8”, which allows one PWC to float free while the other is still supported.

Features

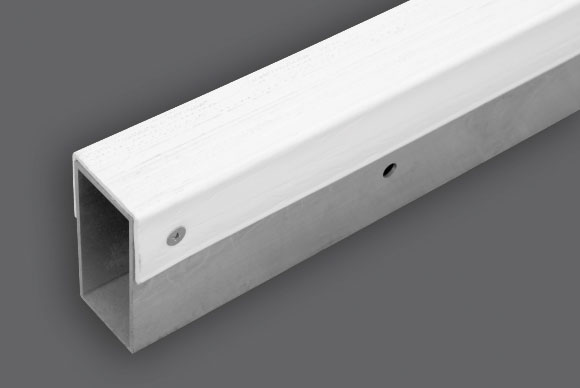

PWC Bunk Options

PWC Bunk Options


Full-length, aluminum tubes with plastic, non-scratch glides or pressure-treated wood bunks covered with marine carpeting.

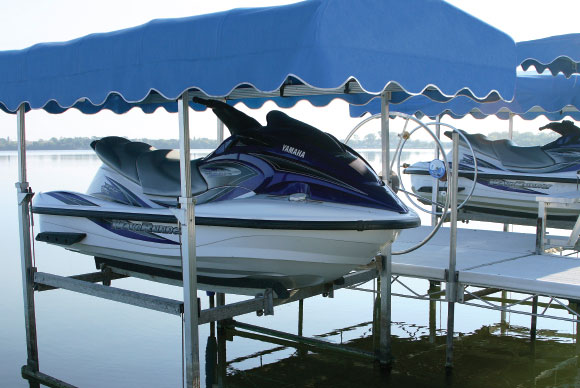

Optional Canopies

Optional Canopies


Protect your prized possession from the elements.

Specifications

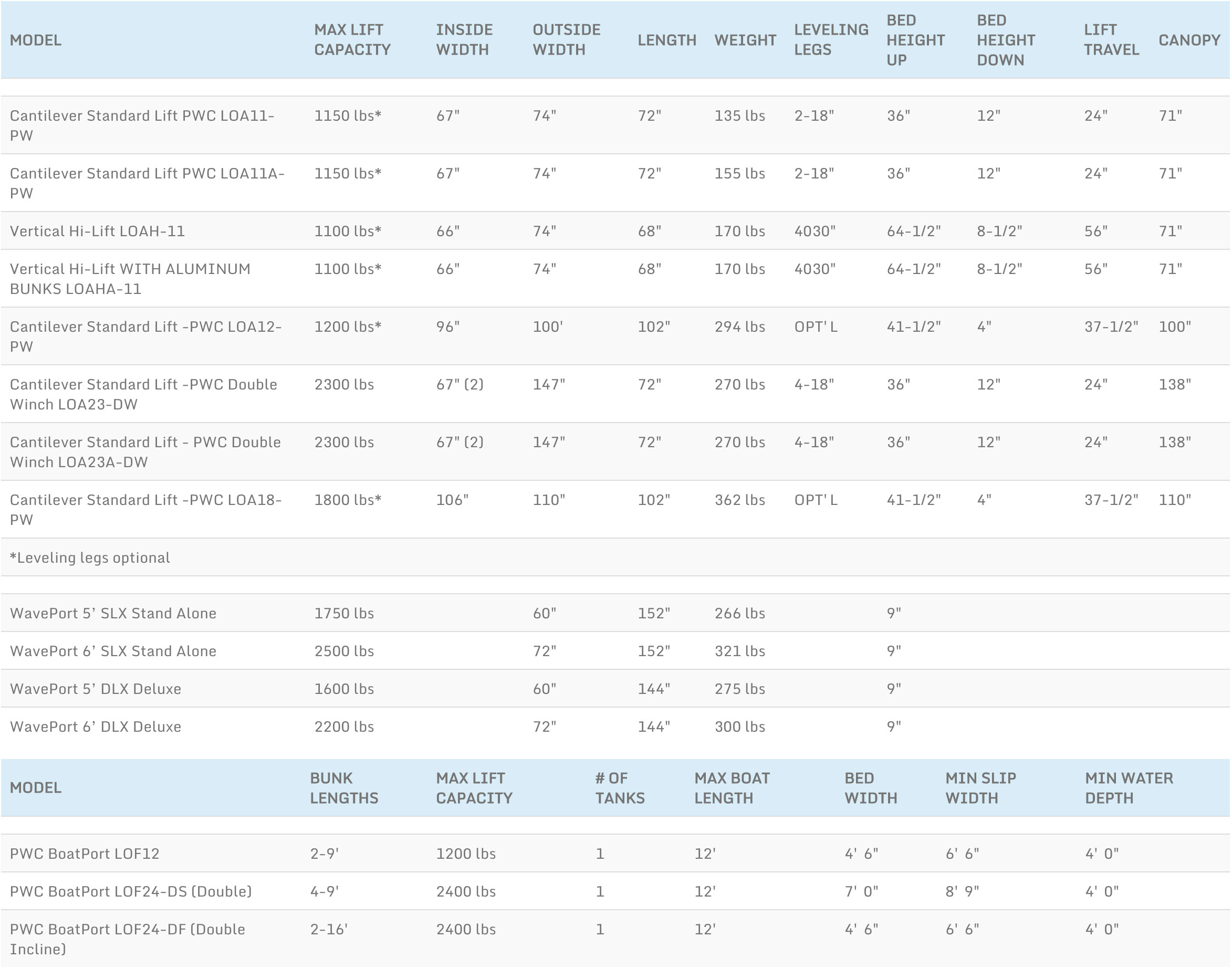

Cable PWC Lift Specifications
